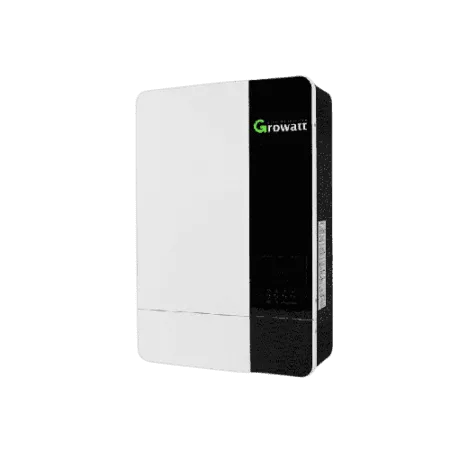

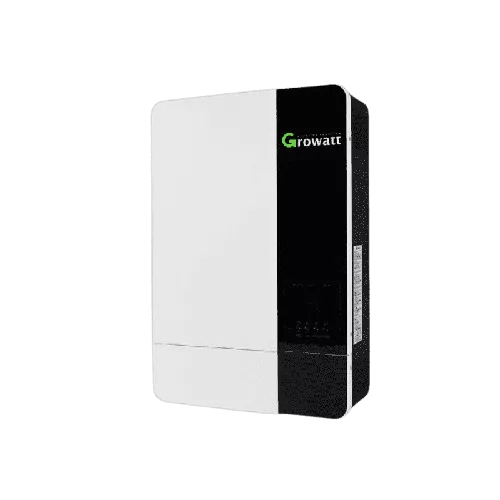

The Growatt SPF5000 ES is a high-performance 5kW 48V hybrid solar inverter designed to meet South Africa’s energy independence needs. Ideal for both off-grid and backup systems, this smart inverter seamlessly integrates a 100A MPPT solar charge controller, a pure sine wave inverter, and a high-efficiency battery charger—all in one compact unit.
Built for 48V battery banks, the SPF5000 ES supports dual AC output for prioritised loads and features built-in WiFi monitoring, allowing you to track system performance in real time via the ShinePhone app. Its wide PV input range (up to 450VDC) ensures maximum solar power harvesting and flexibility in panel configurations.
Whether you’re powering your home or small business, this inverter’s robust design and intelligent energy management features make it an ideal solution for tackling loadshedding, reducing electricity bills, and increasing solar self-consumption.
📊 Technical Specifications
| Specification | Details |
|---|---|
| Model | Growatt SPF 5000 ES |
| Rated Power | 5kW / 5000W |
| Battery Voltage | 48VDC |
| Output Waveform | Pure Sine Wave |
| Max PV Input Voltage | 450VDC |
| MPPT Voltage Range | 120–430VDC |
| Max PV Input Power | 6000W |
| MPPT Solar Charge Controller | 100A |
| AC Input Voltage Range | 170–280VAC |
| AC Output Voltage | 230VAC ±5%, 50/60Hz |
| Surge Capacity | 2 x rated power for 5 sec |
| Efficiency | >93% |
| Parallel Operation | Up to 6 units |
| Dual AC Output | Yes (Main + Second Load) |
| WiFi Monitoring | Included (via ShineWiFi-X dongle) |
| Communication Ports | USB, RS485, CAN |
| Operating Temperature | -25°C to 60°C |
| Dimensions (mm) | 330 x 485 x 135 |
| Weight | ±12 kg |
| Warranty | 2 Years (Manufacturer) |
⚠ Requires 48V battery bank (Lithium or Lead-Acid compatible). Ensure professional installation for best performance.
