5KW Off Grid Solar Inverter Kit – Pure Sine Wave, LiFePO₄ Battery & Cables

Inverter Features (Navasolar X Series)

• Pure Sine Wave Output – Protects sensitive electronics and ensures stable power delivery.

• Rated Power: 5000W continuous / 10,000W surge

• Output Power Factor: Up to 1.0 for maximum load efficiency

• Parallel Capability: Up to 9 units for expanded capacity

• Battery-Independent Operation – Can run without a battery if required

• AC Input Compatibility: Works with grid or generator

• Built-In MPPT Solar Charger: 120–430VDC PV range, 80A max solar charge current

• Maximum PV Input Power: 5500W

• Configurable AC/Solar Input Priority via LCD settings

• Selectable Voltage Range: 170–280VAC (PC mode) / 90–280VAC (appliances)

• High Efficiency: 94% peak inverter efficiency / 98% solar charging efficiency

• Compact Design: 470×310×120 mm, 8.45 kg

• Certified Safety: CE, EMC, and LVD compliant

Battery Features (Navasolar 48V LiFePO₄)

• Nominal Voltage: 48V

• Available Capacities: 4.8kWh (100Ah) / 9.6kWh (200Ah)

• Usable Capacity: 80% DOD – up to 4.46kWh or 9kWh

• Cycle Life: >4000 cycles for long-term reliability

• Rated Charging Current: 40A/ 30A (100Ah) – Max 100A

• Max Discharging Power: 4.2kW

• Communication Ports: CAN / RS485 for system monitoring

• Parallel Connection: Supports up to 16 packs

• Operating Temp: 0°C to +45°C (charging) / -10°C to +30°C (storage)

• Compact Build:

  • 100Ah: 442×470×154 mm, 45 kg

• Warranty: 5 years manufacturer warranty

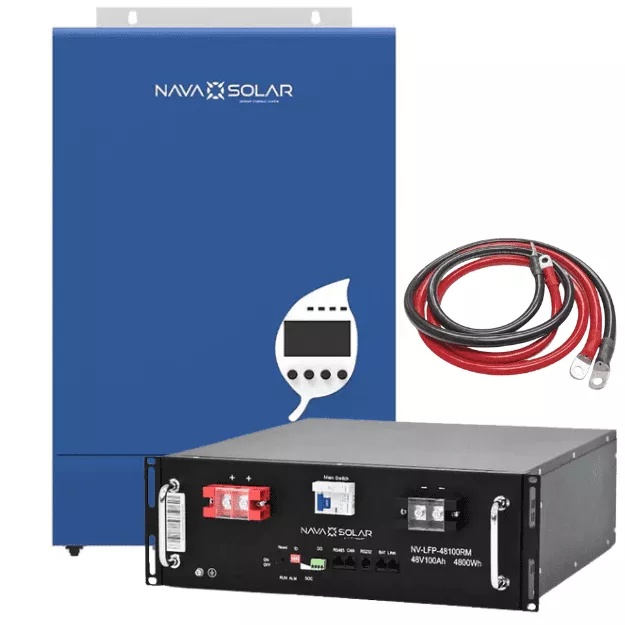

What’s Included

• 1 × 5kW Pure Sine Wave Off-Grid Inverter with MPPT solar charger

• 1 × 48V LiFePO₄ battery (100Ah )

• 1 × 1.8m heavy-duty red/black battery cable set

Perfect For

• Load shedding & power outage backup

• Off-grid homes, cottages, and lodges

• Small businesses and workshops

• Rural or remote areas with limited grid access

Why Choose This Kit

This is a plug-and-play off-grid power solution offering maximum efficiency, long battery life, and scalability. With pure sine wave output, high surge capacity, and lithium battery technology, you’ll have reliable, safe, and future-ready energy independence.
