Powerful 6kW Off-Grid Solar Power for South Africa

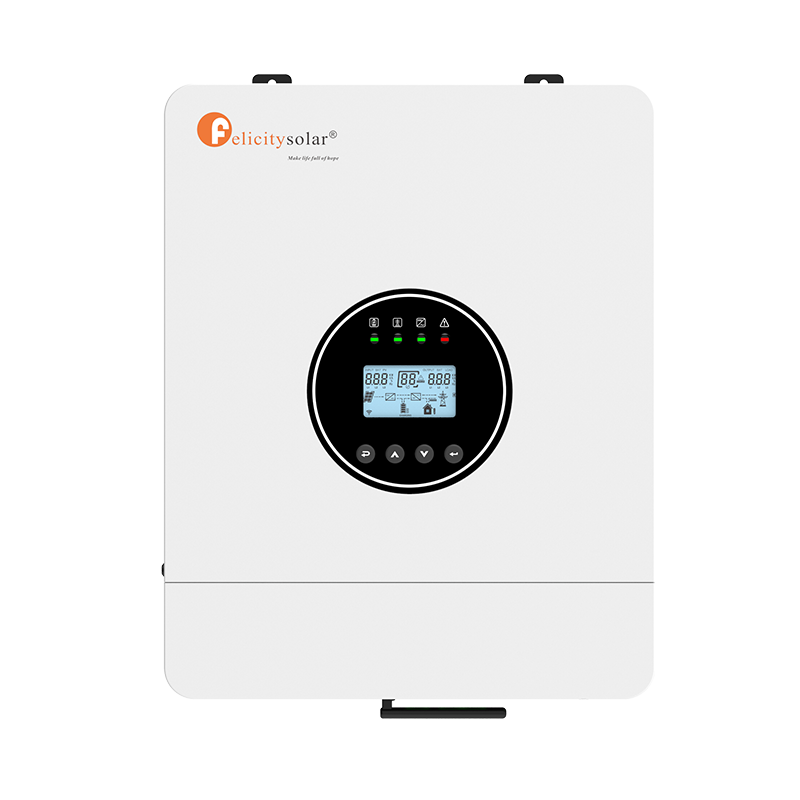

The Felicity Solar IVEM6048-II 6kW 48V Off-Grid Inverter is designed to provide reliable power for homes, farms, small businesses and off-grid installations.
With a rated output of 6000W / 6000VA, this inverter combines three essential functions in one system:
- Pure sine wave inverter
- MPPT solar charge controller
- Battery charger
The inverter operates on a 48V battery system and supports up to 7,500W of solar PV input, allowing installers to build a high-capacity solar charging system around the unit.
High-Voltage MPPT Solar Input
The IVEM6048-II features a high-voltage solar input with a maximum PV open-circuit voltage of 500V and a PV operating range of 90V to 450V.
With a maximum PV input current of 27A and solar charging capability of up to 120A, the inverter provides substantial charging capacity for compatible 48V battery systems.
Built-In Wi-Fi Monitoring
Built-in Wi-Fi allows the inverter to be monitored through a compatible mobile application, helping users keep track of their solar power system remotely. The LCD interface also provides access to configurable settings including charging current and input priorities.
Generator Input and Smart Output Function
The generator input port can be configured as a Smart Output Port, allowing users to customise its output duration for compatible applications. This provides additional flexibility when designing energy management systems.
Flexible Battery Operation
The IVEM6048-II supports operation without a battery in applicable configurations and includes a lithium battery activation function. It is also designed to work with utility or generator AC input.
Expand Your Solar System
For larger installations, the IVEM6048-II supports parallel operation of up to 12 single-phase units, providing a potential combined system capacity of up to 72kW / 72kVA. A battery connection is required for parallel operation.
Key Features
- 6,000W / 6,000VA rated output
- 48V battery system
- Pure sine wave output
- Built-in MPPT solar charge controller
- Maximum PV input power: 7,500W
- Maximum PV open-circuit voltage: 500V
- PV operating voltage range: 90V–450V
- Maximum PV input current: 27A
- Maximum solar charging current: 120A
- Maximum combined PV + grid charging current: 120A
- Built-in Wi-Fi monitoring
- Generator input compatible
- Generator port configurable as Smart Output Port
- Lithium battery activation function
- Battery-free operation supported
- Parallel capability: up to 12 units
- Maximum parallel capacity: 72kW / 72kVA
- Peak efficiency: 93%
- Overload, over-temperature and short-circuit protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Felicity Solar |
| Model | IVEM6048-II |
| Product Type | Off-Grid Inverter / Charger |
| Rated Output Power | 6000VA / 6000W |
| Nominal DC Input Voltage | 48V |
| Output Waveform | Pure sine wave |
| Nominal Output Voltage | 230Vac ±5% |
| Maximum PV Input Power | 7500W |
| Maximum PV Open Circuit Voltage | 500V |
| PV Working Voltage Range | 90V–450V |
| Maximum PV Input Current | 27A |
| Minimum PV Start-Up Voltage | 95V |
| Maximum Solar Charging Current | 120A |
| Maximum PV + Grid Charging Current | 120A |
| AC Input Voltage Range | 90V–280Vac |
| Maximum AC Input Voltage | 280Vac |
| Input Frequency | 50Hz / 60Hz Auto Detection |
| Peak Efficiency | 93% |
| Wi-Fi | Built-In |
| Parallel Capability | Up to 12 Units |
| Maximum Parallel Capacity | 72kW / 72kVA |
| Operating Temperature | -10°C to 50°C |
Why Buy the IVEM6048-II?
The IVEM6048-II is an excellent option for customers looking for a powerful 48V solar inverter with high-voltage PV capability and advanced system flexibility. Its 7.5kW PV input capacity, 120A charging capability, Wi-Fi monitoring and parallel expansion options make it suitable for installations ranging from residential backup systems to larger off-grid power solutions.
Ideal Applications
Suitable for:
- Residential solar systems
- Load-shedding backup power
- Off-grid homes
- Farms and agricultural properties
- Small businesses
- Workshops
- Remote installations
- Solar battery backup systems
- Generator-supported solar systems
