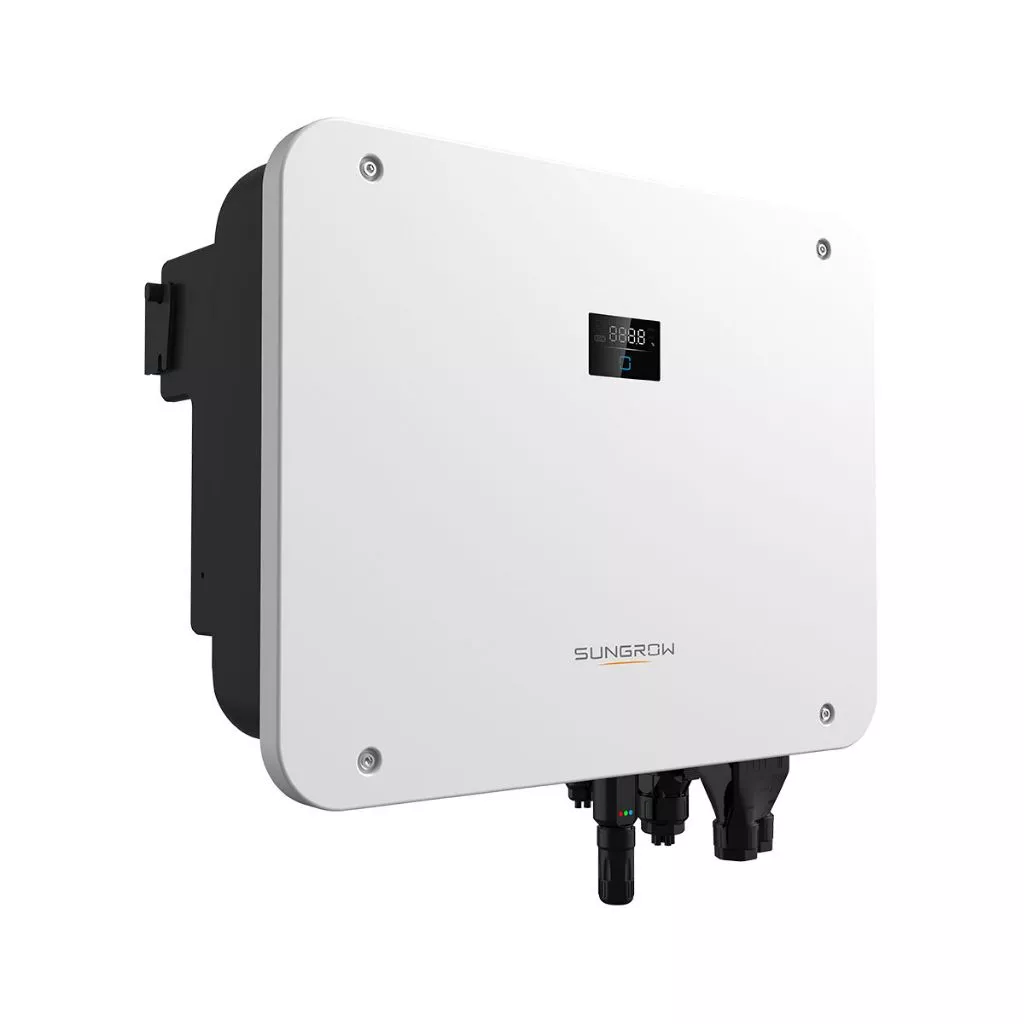

The Sungrow 25kW 3P Hybrid Inverter is a high-performance, three-phase hybrid solution engineered for commercial and industrial solar energy systems. With its seamless integration of solar generation, battery storage, and grid management, this inverter is ideal for maximizing energy self-consumption, enabling peak shaving, and providing reliable backup power.
Designed for versatility and durability, the Sungrow 25kW inverter supports both on-grid and off-grid modes with an impressive efficiency rating of up to 98.4%. It features robust protection with IP66 weatherproofing, built-in surge protection, and advanced EMS (Energy Management System) capabilities. With its compact design, low noise output, and easy commissioning via the iSolarCloud app, this hybrid inverter is a smart choice for future-ready energy solutions.
| Specification | Details |
|---|---|
| Model | SH25T |
| Inverter Type | Three-Phase Hybrid |
| Rated AC Output Power | 25,000 W (25kW) |
| Max. PV Input Voltage | 1,000 V |
| Nominal PV Voltage | 600 V |
| MPPT Voltage Range | 200 V – 960 V |
| Number of MPPTs | 2 |
| Max. PV Input Current (per MPPT) | 26 A |
| Battery Voltage Range | 150 V – 600 V |
| Max. Charge/Discharge Power | 25 kW |
| AC Output Voltage | 400 V, 3-phase |
| Frequency | 50/60 Hz |
| Max. Efficiency | 98.4% |
| Protection Rating | IP66 |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | -25°C to +60°C |
| Communication Interfaces | RS485, CAN, Ethernet, Wi-Fi (optional), 4G (optional) |
| Dimensions (W x H x D) | 650 x 750 x 300 mm |
| Weight | 52 kg |
| Commissioning | iSolarCloud App |
| Certifications | IEC 62109-1/2, CE, VDE, EN50549-1, and others |
