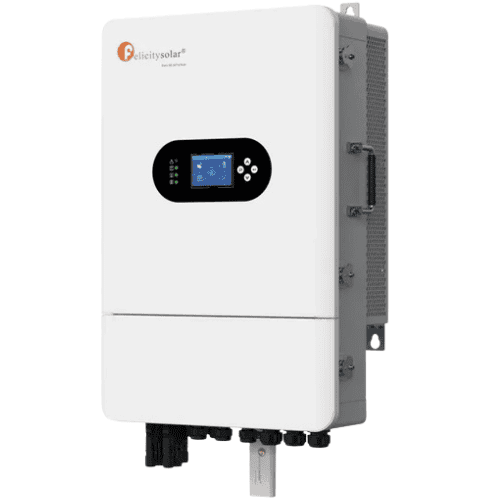

The Felicity Solar IVGM8KLP1G1 is a high-capacity single-phase hybrid inverter designed to manage solar generation, battery storage and grid electricity as part of a complete energy system.
With an 8kW rated AC output and maximum apparent output of 8.8kVA, the inverter can support a wide range of household and light commercial loads. It is particularly suitable for installations where reliable backup power and increased solar self-consumption are important.
The inverter supports a 40–60V battery voltage range, making it compatible with suitable low-voltage lithium-ion and lead-acid battery systems. Battery charging and discharging can reach up to 190A, with up to 8kW of battery charging/discharging power.
Maximise Solar Generation with Dual MPPT
The IVGM8KLP1G1 features two independent MPPT trackers, allowing the solar array to be configured across separate PV strings for improved energy harvesting where roof orientations or panel configurations differ.
The inverter supports up to 12kW of recommended PV power, with a maximum PV voltage of 500V and an MPPT voltage range of 120–425V.
With maximum MPPT efficiency of 99.9% and overall maximum inverter efficiency of 97.6%, the system is designed to make efficient use of available solar energy.
Reliable Backup During Power Outages
For South African installations where load shedding and grid interruptions remain a concern, the inverter provides a dedicated backup output rated at 8kW.
The backup transfer time is approximately 10ms, helping connected loads transition quickly to battery/inverter power when grid supply is interrupted.
The system also incorporates multiple protection functions, including anti-islanding, over-current, overload, short-circuit, GFCI, AFCI and insulation monitoring.
Smart Monitoring via Wi-Fi
Built-in communication and monitoring capabilities allow users to monitor their solar system remotely. The inverter supports Wi-Fi/GPRS monitoring, while battery management communication is available through RS485 and CAN.
This makes it easier to keep track of system performance, solar production, battery operation and energy usage.
Expandable Solar Power System
The IVGM8KLP1G1 can be configured in parallel, with support for up to six compatible units, providing a pathway for system expansion as energy requirements grow.
Built for Demanding Installation Environments
An IP65-rated enclosure provides protection against dust and water ingress, making the inverter suitable for appropriately selected indoor or protected outdoor installation locations.
The operating temperature range is specified as -25°C to 60°C, with power derating above 45°C.
Key Features
- 8kW rated single-phase AC output
- 8.8kVA maximum apparent output
- 48V-class / 40–60V battery system
- Supports lithium-ion and lead-acid batteries
- Up to 190A battery charging current
- Up to 190A battery discharge current
- Up to 8kW battery charge/discharge power
- Up to 12kW recommended solar PV
- Dual MPPT solar tracking
- 2 strings per MPPT
- 26A + 26A maximum PV input current
- 500V maximum PV input voltage
- 120–425V MPPT voltage range
- Up to 99.9% MPPT efficiency
- Up to 97.6% maximum inverter efficiency
- 8kW backup output
- Approximately 10ms backup transfer time
- Built-in Wi-Fi/GPRS monitoring
- RS485 and CAN battery communication
- Supports parallel installation of up to 6 units
- IP65 protection rating
- Smart cooling
- LCD and LED display
- Suitable for grid-connected and backup applications
Technical Specifications
| Specification | IVGM8KLP1G1 |
|---|---|
| Brand | Felicity Solar |
| Model | IVGM8KLP1G1 |
| Inverter Type | Hybrid Solar Inverter |
| Rated Output Power | 8kW |
| Rated Apparent Power | 8kVA |
| Maximum AC Output Power | 8.8kW |
| Phase | Single Phase |
| AC Output Voltage | 220–230V |
| AC Frequency | 50/60Hz |
| Rated AC Output Current | 34.8A |
| Maximum AC Output Current | 38.3A |
| Battery Voltage Range | 40–60V |
| Battery Type | Lithium-ion / Lead-acid |
| Maximum Charge Current | 190A |
| Maximum Discharge Current | 190A |
| Maximum Charge/Discharge Power | 8kW |
| Recommended Maximum PV Power | 12kW |
| Maximum PV Voltage | 500V |
| PV Operating Voltage | 90–500V |
| MPPT Voltage Range | 120–425V |
| MPPT Trackers | 2 |
| PV Strings per MPPT | 2 |
| Maximum PV Input Current | 26A + 26A |
| Maximum PV Short-Circuit Current | 44A + 44A |
| Maximum Efficiency | 97.6% |
| MPPT Efficiency | Up to 99.9% |
| Backup Rated Power | 8kW |
| Backup Maximum Current | 40A |
| Backup Transfer Time | Approximately 10ms |
| Monitoring | Wi-Fi / GPRS |
| Battery Communication | CAN / RS485 |
| Protection Rating | IP65 |
| Installation | Wall Mounted |
| Operating Temperature | -25°C to 60°C* |
| Parallel Capability | Up to 6 units |
| Net Weight | Approx. 33.5kg |
| Dimensions | Approx. 430 × 654 × 243mm |
*Power derating applies above 45°C. Specifications should be confirmed against the latest manufacturer datasheet before installation.
Why Choose the Felicity Solar IVGM8KLP1G1?
High solar capacity: Connect a recommended PV array of up to 12kW to make better use of available roof space.
Strong battery performance: Up to 190A charging and discharging supports high-power battery operation.
Fast backup: Approximately 10ms transfer time helps maintain continuity for supported backup loads.
Smart energy management: Hybrid operation allows solar, battery and grid energy to work together in one system.
Expandable: Up to six compatible units can be paralleled for larger energy requirements.
Remote monitoring: Wi-Fi/GPRS connectivity provides convenient system monitoring.
IP65 protection: The enclosure is designed for demanding installation environments.
Ideal Applications
The Felicity Solar IVGM8KLP1G1 is suitable for:
- Residential solar power systems
- Large homes with high electrical demand
- Load-shedding backup systems
- Solar + battery installations
- Grid-tied hybrid systems
- Solar self-consumption applications
- Home offices and small businesses
- Backup power systems
- New solar installations and system upgrades
