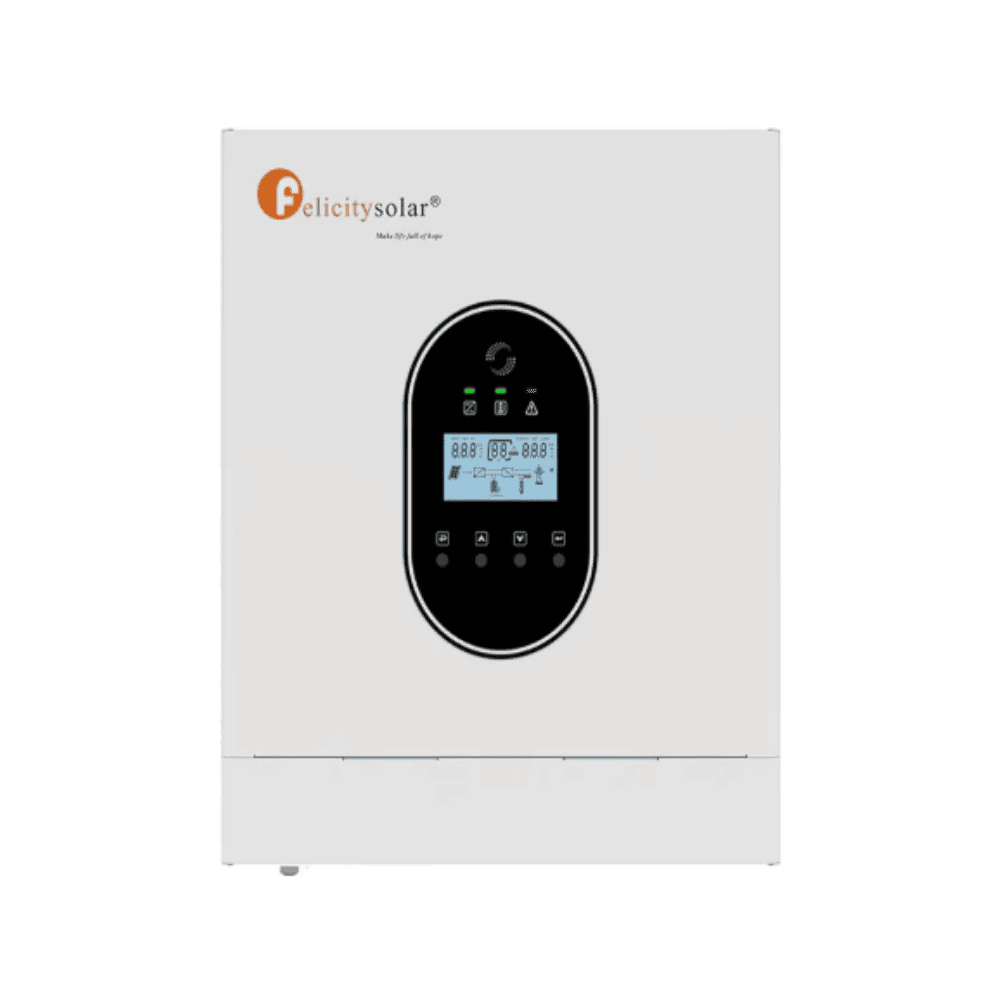

The Felicity Solar IVCM1012 PRO is a compact 1kW off-grid solar inverter designed for reliable backup and solar-energy applications. Combining a pure sine wave inverter, MPPT solar charge controller and battery charger in one unit, it provides a practical solution for small homes, backup systems, cabins, remote installations and other low-voltage solar applications.
With a 1,000W continuous output and up to 3,000W instantaneous Turbo power, the IVCM1012 PRO provides additional surge capacity for compatible loads. Its 12V battery architecture makes it particularly suitable for smaller solar and backup systems.
The integrated MPPT controller supports up to 60A of solar charging current and accepts up to 800W of PV input, with a maximum PV open-circuit voltage of 105V.
Pure Sine Wave Power
The IVCM1012 PRO produces a 230V pure sine wave AC output, making it suitable for a wide range of compatible household electronics and electrical equipment.
Integrated MPPT Solar Charging
The built-in MPPT solar charge controller allows the inverter to efficiently harvest available energy from compatible solar panels. The 12V model supports a maximum 800W PV input, 15–90V operating PV range, and 105V maximum PV open-circuit voltage.
3kW Turbo Power
Although rated at 1,000W, the IVCM1012 PRO can provide up to 3,000W of instantaneous Turbo output for suitable surge-demand applications. This makes it more capable of handling short-duration starting loads than its continuous rating alone suggests.
Flexible Battery Compatibility
The inverter supports configurable charging profiles for AGM, flooded, self-defined and lithium batteries, allowing it to be integrated with different 12V battery technologies.
Built for Backup Power
The IVCM1012 PRO can operate with utility or generator input and includes automatic restart functionality. Its UPS transfer time is approximately 10ms, according to the manufacturer documentation.
Key Features
- 1,000W rated output
- 3,000W Turbo instantaneous output
- 12V DC battery system
- 230V pure sine wave output
- Built-in MPPT solar charge controller
- 60A maximum solar charging current
- Up to 800W PV input
- 105V maximum PV open-circuit voltage
- 15–90V PV operating range
- Compatible with AGM, flooded and lithium batteries
- LCD display and configurable settings
- AC and solar charging
- Utility/generator compatible
- Cold-start capability
- Automatic restart
- RS485 communication
- Compact low-voltage design
Technical Specifications
| Specification | IVCM1012 PRO |
|---|---|
| Brand | Felicity Solar |
| Model | IVCM1012 PRO |
| Product Type | Off-Grid Solar Inverter |
| Rated Output | 1,000W / 1,000VA |
| Turbo Output | 3,000W |
| Nominal Battery Voltage | 12V DC |
| Output Waveform | Pure Sine Wave |
| Nominal AC Output | 230V AC ±5% |
| Output Frequency | 50/60Hz, auto detection |
| Maximum PV Open-Circuit Voltage | 105V |
| PV Operating Voltage | 15–90V |
| Maximum PV Input Power | 800W |
| Maximum Solar Charging Current | 60A |
| Maximum Combined Charging Current | 80A |
| AC Input Voltage | 230V |
| AC Input Range | 90–280V |
| Maximum Efficiency | 93% |
| UPS Transfer Time | Approx. 10ms |
| Battery Compatibility | AGM, Flooded, Lithium, User-Defined |
| Communication | RS485 |
| Operating Temperature | -10°C to 55°C |
| Net Weight | 5.5kg |
| Dimensions | 340 × 248 × 107mm |
Manufacturer specifications confirm the above core electrical specifications.
Warranty
2-Year Warranty
Use the 2-year warranty shown in your supplied product data for the X Solar listing. The current manufacturer documentation I checked does not specify the retail warranty period, so this should be verified against X Solar’s supplier warranty terms before publishing.
What Can a 1kW Inverter Power?
The IVCM1012 PRO is intended for loads within its 1,000W continuous output rating. Depending on the actual power consumption and startup requirements, suitable applications can include:
- TVs
- Wi-Fi routers
- Laptops
- Computers
- LED lighting
- Fans
- Chargers
- Small appliances
- Entertainment equipment
- Small office equipment
- Selected refrigeration loads
Important: The 3,000W Turbo figure is a short-duration surge capability and should not be treated as a continuous 3kW output. Always check appliance running and startup requirements before installation.
Ideal Applications
Load Shedding Backup
Use with a suitable 12V battery bank to provide backup electricity for essential household electronics.
Small Solar Systems
The integrated MPPT controller makes the IVCM1012 PRO suitable for compact off-grid solar installations.
Remote Power
A practical option for cabins, workshops, remote offices and other locations without reliable grid electricity.
Solar Backup Systems
Combine the inverter with compatible solar panels and a 12V battery to create a complete small-scale solar backup system.
FAQ
Is the Felicity Solar IVCM1012 PRO a hybrid inverter?
It is a multifunction off-grid inverter/charger with an integrated MPPT solar charge controller. It can combine inverter, battery charging and solar charging functions in one unit.
What battery voltage does the IVCM1012 PRO use?
The IVCM1012 PRO is designed around a 12V DC battery system.
How much solar can I connect?
The manufacturer specifies a maximum PV input of 800W for the IVCM1012 PRO, with a maximum PV open-circuit voltage of 105V.
What is the maximum solar charging current?
The integrated MPPT controller supports up to 60A maximum solar charging current.
Does it produce pure sine wave power?
Yes. The inverter provides a pure sine wave 230V AC output.
What is the Turbo power?
The IVCM1012 PRO has a 1,000W rated output and up to 3,000W instantaneous Turbo output.
Can it work with lithium batteries?
Yes. The charging system supports lithium batteries as well as AGM, flooded and user-defined battery profiles.
Does it include an MPPT?
Yes. The IVCM1012 PRO has an integrated MPPT solar charge controller.
