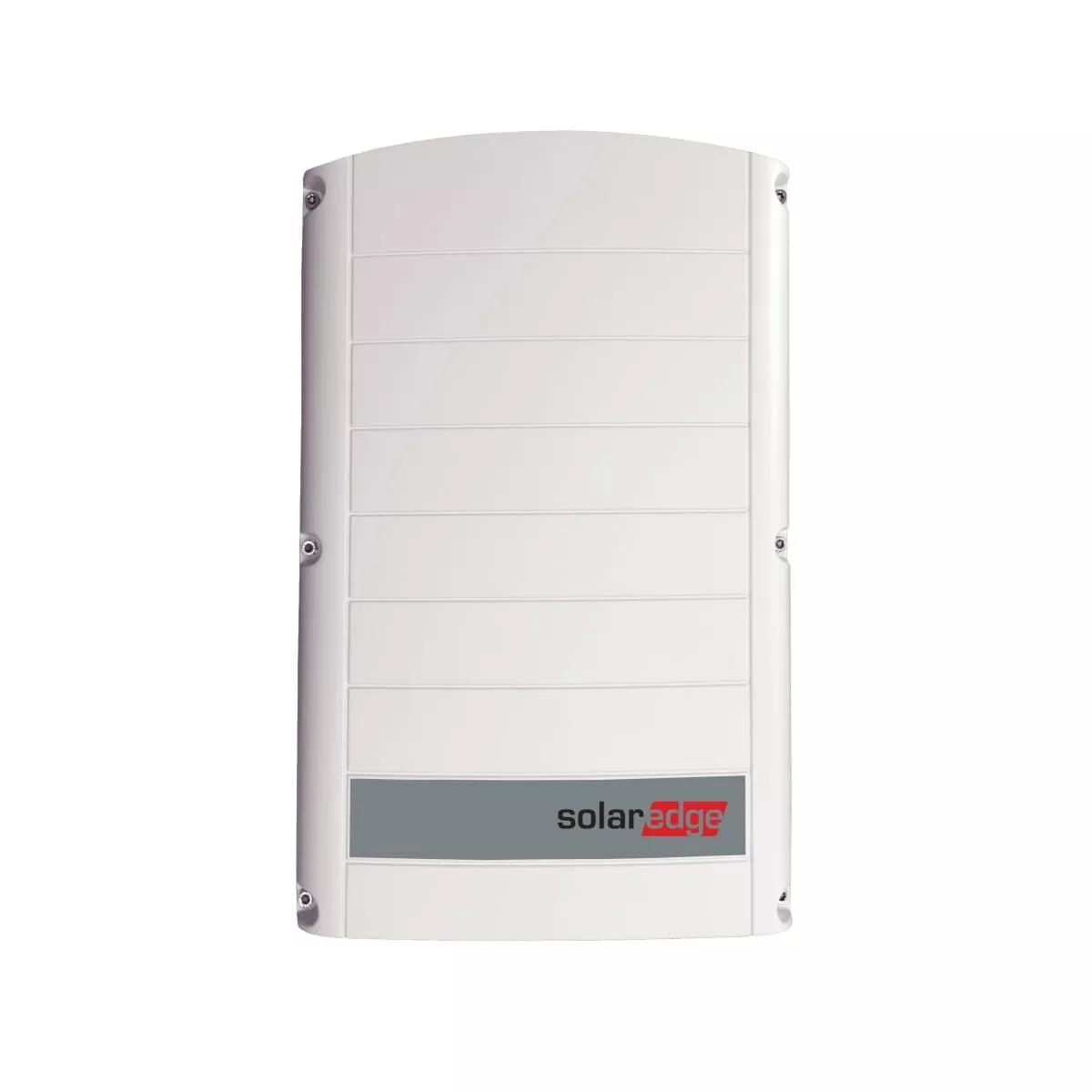

The SolarEdge 17.0kW Inverter 3P SetApp Config is a cutting-edge, three-phase string inverter designed for superior energy yield, easy installation, and real-time performance monitoring in commercial and light-industrial solar PV systems. Engineered for optimal integration with SolarEdge power optimizers, this inverter maximizes system performance by allowing module-level power tracking and enhances safety with rapid shutdown capabilities.
This model features SetApp-based commissioning, enabling a smartphone-driven setup process via the intuitive mobile interface, eliminating the need for screen-based configuration. Its compact design and lightweight build simplify handling and mounting, while the industry-leading efficiency of 98% ensures that more of the harvested solar energy is converted into usable AC power.
The SolarEdge 17.0kW inverter is also future-ready, offering integrated support for battery storage and smart energy management, making it a core component for scalable, intelligent energy systems.
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | SolarEdge SE17K-RW000NNN4 |
| Inverter Type | Three-Phase, Grid-Tied |
| Rated AC Output Power | 17.0 kW |
| Maximum AC Output Current | 25.5 A per phase |
| AC Output Voltage (Nominal) | 400V (3-phase) |
| DC Input Voltage (Max) | 900 V |
| DC Voltage (Nominal) | 750 V |
| Maximum Input Current | 26.5 A |
| Maximum Efficiency | 98.0% |
| Euro Efficiency | 97.3% |
| Nighttime Power Consumption | < 2.5 W |
| Cooling Method | Natural convection |
| Protection Rating | IP65 (Outdoor and Indoor use) |
| Dimensions (W × H × D) | 550 × 540 × 260 mm |
| Weight | 22.5 kg |
| Communications | RS485, Ethernet, Wi-Fi (optional), Cellular |
| Commissioning | SetApp mobile app-based |
| Certifications | IEC/EN 62109-1, IEC/EN 62109-2, CE |
Key Benefits
-
⚡ High-Efficiency Performance – Up to 98% conversion efficiency to maximize solar energy harvest
-
📱 App-Based Setup – Easy commissioning using the SetApp mobile platform for faster deployment
-
🔌 Optimizer Compatibility – Designed for use with SolarEdge power optimizers for module-level MPPT
-
🧠 Smart Monitoring – Real-time data visibility through SolarEdge monitoring platform
-
🛡️ Superior Safety – Built-in arc fault protection and rapid shutdown compliance
-
🌦️ Indoor & Outdoor Use – IP65-rated enclosure allows flexible installation
-
🔧 Lightweight & Compact – Simplifies transport and wall mounting with only 22.5 kg total weight
-
🔄 Storage-Ready – Compatible with SolarEdge battery solutions for future expansion
Ideal Applications
-
Commercial rooftop PV installations
-
Light industrial solar systems
-
Educational and public infrastructure projects
-
Smart grid and net metering environments
