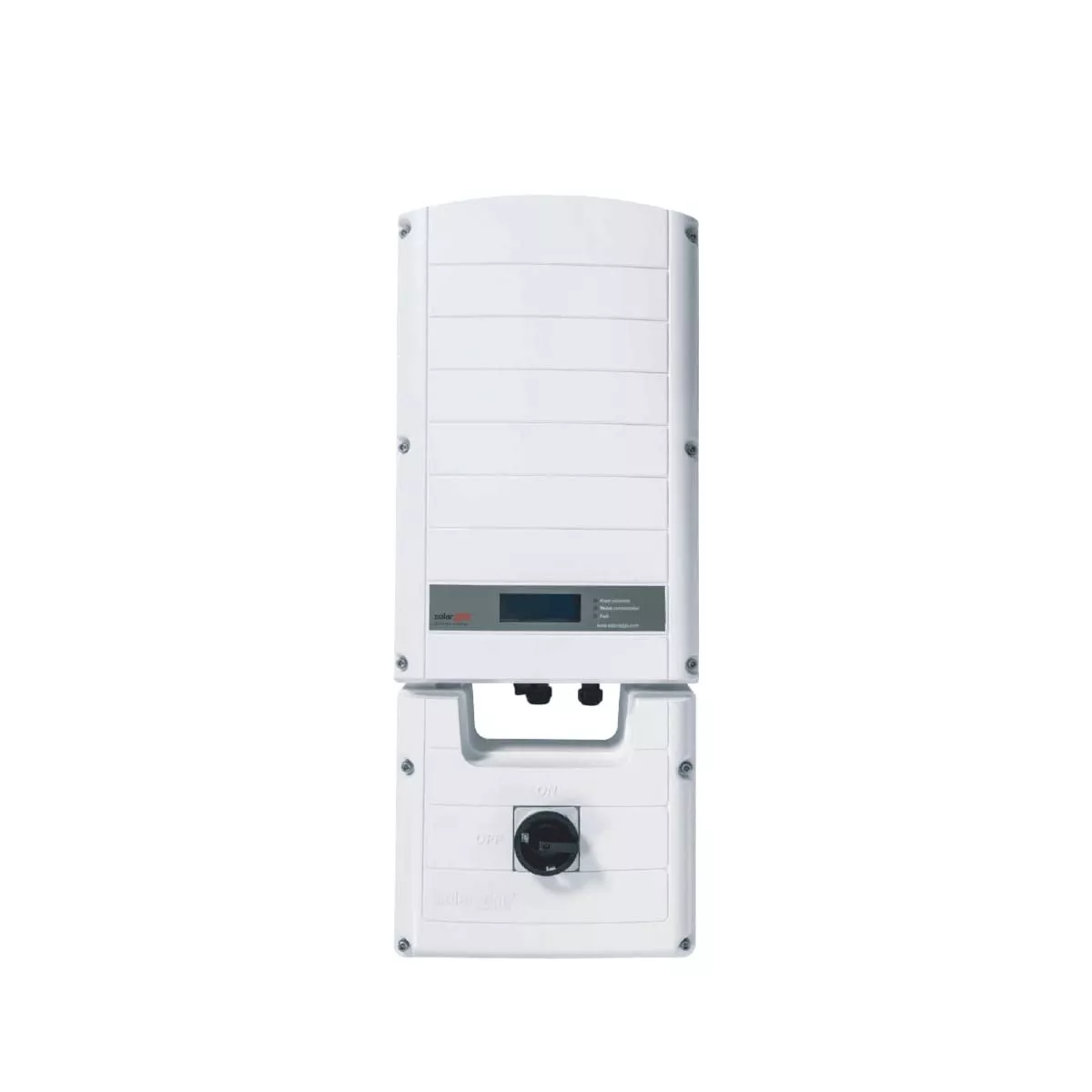

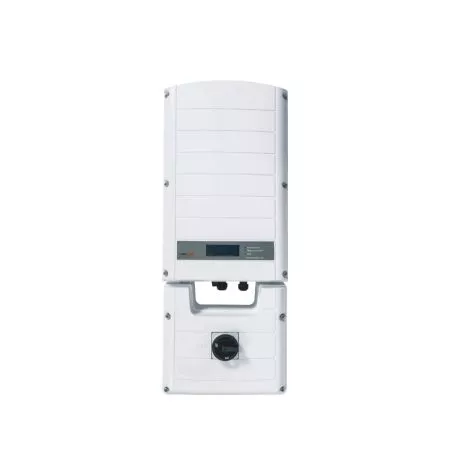

The SolarEdge 33.3kW Inverter 3P DCD/SPD/Fuse SetApp Gland Connectors is engineered for high-performance solar energy systems in commercial and industrial settings. Its three-phase configuration supports substantial energy loads, making it ideal for large-scale installations.
This inverter comes equipped with an integrated DC safety switch, Type 2 DC surge protection device (SPD), and DC fuses, providing comprehensive protection against electrical faults and surges. The gland connectors facilitate secure and efficient cable management, enhancing installation safety and durability.
Commissioning and configuration are simplified through SolarEdge’s SetApp mobile application, allowing installers to set up the inverter directly from a smartphone, reducing installation time and complexity.
With a maximum efficiency of 98.3%, this inverter ensures optimal energy conversion, maximizing the return on investment for solar energy systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SE33.3K-RW00IBNR4 |
| AC Output Power | 33,300 W |
| Maximum AC Output Current per Phase | 48.25 A |
| AC Output Voltage (Nominal) | 400 V (Line-to-Line) / 230 V (Line-to-Neutral) |
| AC Frequency | 50/60 Hz ± 5% |
| Maximum DC Input Voltage | 1000 V |
| DC Voltage Operating Range | 680 – 1000 V |
| Maximum DC Input Current | 48.25 A |
| Maximum Efficiency | 98.3% |
| European Weighted Efficiency | 98% |
| Nighttime Power Consumption | < 4 W |
| Cooling Method | Fan (user replaceable) |
| Protection Rating | IP65 (suitable for outdoor and indoor use) |
| Dimensions (H x W x D) | 836 x 317 x 300 mm |
| Weight | 36.5 kg |
| Communication Interfaces | 2 x RS485, Ethernet, Wi-Fi (optional), Cellular (optional) |
| Commissioning | SetApp mobile application |
| Integrated Protections | DC Safety Switch, Type 2 DC SPD, DC Fuses |
| Certifications | IEC/EN 62109-1, IEC/EN 62109-2, CE |
Key Features
-
Integrated Safety Components: Includes DC safety switch, Type 2 DC SPD, and DC fuses for enhanced protection.
-
High Efficiency: Achieves up to 98.3% efficiency, ensuring maximum energy yield.
-
SetApp Configuration: Allows for quick and easy commissioning via smartphone.
-
Robust Design: IP65-rated enclosure suitable for both indoor and outdoor installations.
-
Flexible Communication: Supports multiple communication interfaces for seamless integration with monitoring platforms.
-
Optimized for Commercial Use: Ideal for large-scale solar installations requiring reliable and efficient power conversion.
Applications
-
Commercial rooftop solar systems
-
Industrial solar installations
-
Large-scale photovoltaic power plants
-
Solar energy systems requiring enhanced safety features
